Targeted Thin-Film Depositions
NREL’s materials discovery and design work is supported by several non-combinatorial physical vapor deposition chambers for targeted follow-up studies of the most promising materials identified by combinatorial synthesis.

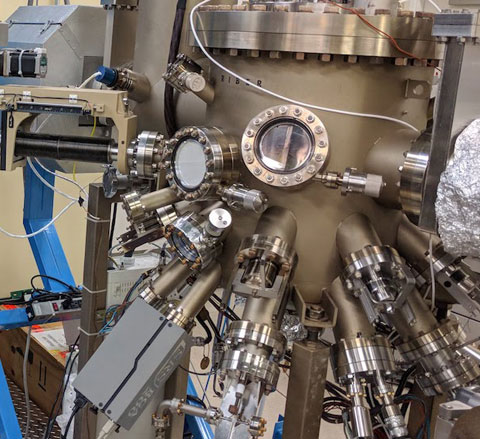

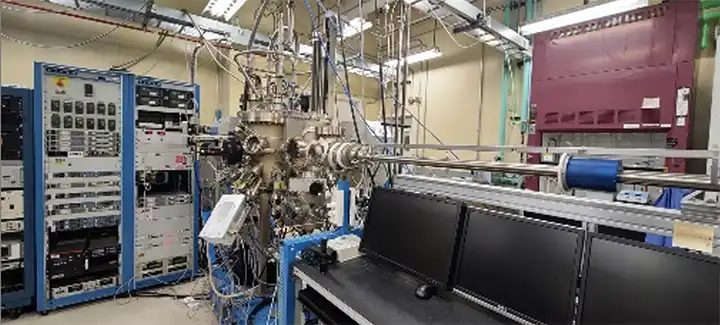

Molecular Beam Epitaxy

Chamber identification: RA
Materials: Nitrides, formerly used for oxides (replaced by OA chamber)
Substrates: <4" diameter, <1200°C
Sources: 10 ports (3 CF40, 7 CF6): gallium, aluminum, indium, magnesium, silicon, germanium, and tin
Gases: Nitrogen radio-frequency (RF) plasma and oxygen RF plasma (formerly, replaced by OA chamber)
Base pressure: 10-11-10-10 Torr
Features: Load lock, preparation chamber, reflection high-energy electron diffraction, and UV band-edge pyrometry (UV-BandiT), and artificial intelligence and machine learning enabled measurement and control for autonomous experimentation. Access a virtual tour of NREL’s power electronics facilities, and navigate to SERF: Lab W128 to view the RA chamber.
Publications:
Designing TaC Virtual Substrates for Vertical AlxGa1-xN Power Electronics Devices, PRX Energy (2024)
Improving Luminescence Response in ZnGeN2/GaN Superlattices: Defect Reduction Through Composition Control, Journal of Physics D: Applied Physics (2024)
Rapid Screening of Molecular Beam Epitaxy Conditions for Monoclinic (InxGa1−x)2O3 Alloys, Journal of Materials Chemistry A (2024)

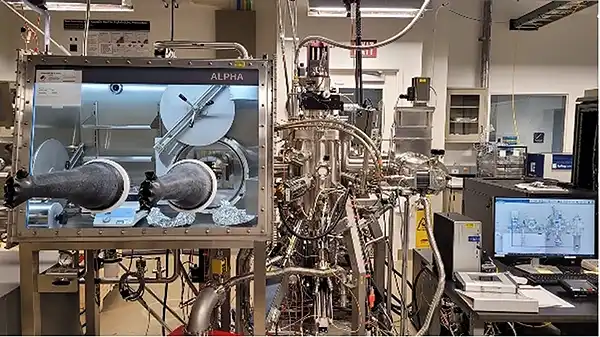

Chamber identification: COMBE
Materials: Nitrides (can be reconfigured for oxides)
Substrates: <4" diameter, heater up to 1200°C, cryogenic cold stage to ~80K
Sources: Eight source ports, four of which are retractable and differentially pumped for rapid reconfiguration. Two of these are dedicated to electron-beam evaporators.
Gases: Nitrogen radio-frequency plasma.
Base pressure: 10-11-10-10 Torr
Features: Load lock glove box or atmosphere access, reflection high-energy electron diffraction, retractable/reloadable cells, 2x electron-beam cells, cryogenic substrate stage, programmable linear wedge shutters for combinatorial graded depositions

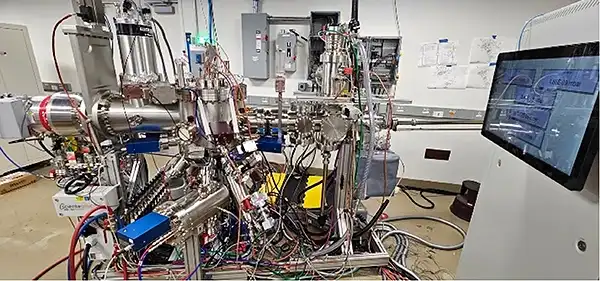

Chamber identification: OA
Materials: Oxides
Substrates: <3" diameter, <1000°C
Sources: 10 ports (five differentially pumped): gallium, aluminum, indium, germanium, tin, silicon, magnesium, 2x electron-beam evaporators (nickel, chromium, zirconium, boron, and others), and boron trioxide
Gases: Oxygen radio-frequency plasma
Base pressure: 10-11-10-10 Torr
Features: Load lock, preparation chamber, reflection high-energy electron diffraction, prep chamber heater and source ports, in situ mask changing station, 5x differentially pumped sources with individual turbo pumps, dual electron-beam sources for heterojunctions with low vapor pressure elements, UV Band-edge pyrometry (UV-BandiT), 900 °C preparatory chamber outgas station.
Pulsed Laser Deposition
Access a virtual tour of NREL's power electronics facilities, and navigate to SERF: Lab C220 to view pulse laser deposition chambers No. 1 and No. 2.

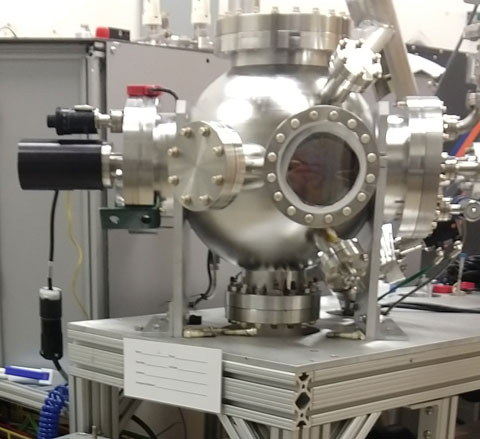

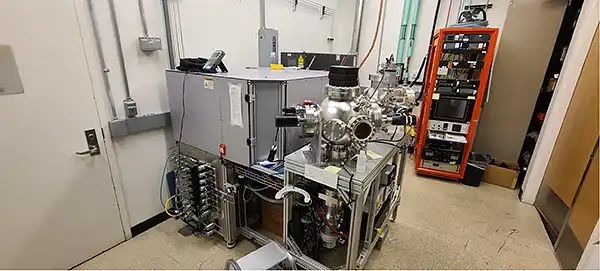

Pulsed Laser Deposition Chamber: No. 1
Materials: Oxides and other materials
Substrates: <3" diameter, <800 °C
Targets: 1” circular
Gases: Ar, O, N, N2/H2
Base pressure: 10-9-10-8 Torr
Features: Targeted material deposition
Publications:
NiGa2O4 Interfacial Layers in NiO/Ga2O3 Heterojunction Diodes at High Temperature, Applied Physics Letters (2024)
Gallium Oxide Heterojunction Diodes for 400 °C High-Temperature Applications, Physica Status Solidi (2023)

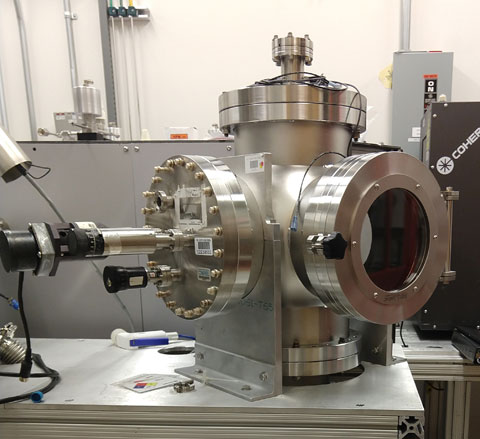

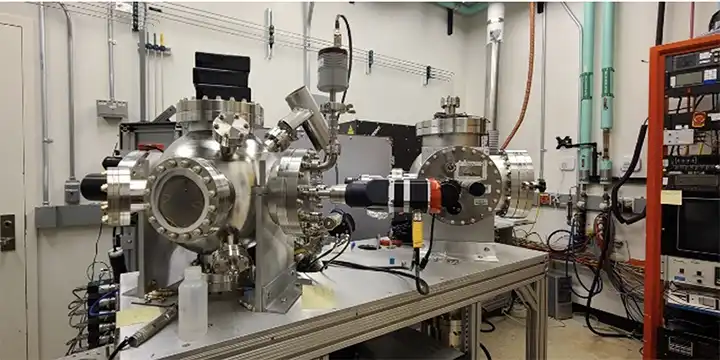

Pulsed Laser Deposition Chamber: No. 2
Materials: Oxides
Substrates: <3" diameter, <800 °C
Targets: 1” circular
Gases: Ar, O, N, N2/H2
Base pressure: 10-9-10-8 Torr
Features: Targeted material deposition
Publications:
Enhanced Electron Mobility Due to Dopant-Defect Pairing in Conductive ZnMgO, Adv. Func. Mat. (2014)
Surface Origin of High Conductivities in Undoped In2O3 Thin Films, Phys. Rev. Lett. (2012)
Additional Publications
Growth and Characterization of Homoepitaxial ß-Ga2O3 Layers, J. Phys. D: Appl. Phys. (2020)
Epitaxial Growth of Rock Salt MgZrN2 Semiconductors on MgO and GaN, Applied Physics Letters (2020)
Heteroepitaxial Integration of ZnGeN2 on GaN Buffers Using Molecular Beam Epitaxy, Crystal Growth and Design (2020)
