Champion Photovoltaic Module Efficiency Chart

NREL maintains a chart of the highest confirmed conversion efficiencies for champion modules for a range of photovoltaic technologies, plotted from 1988 to the present.

Learn how NREL can help your team with certified efficiency measurements.

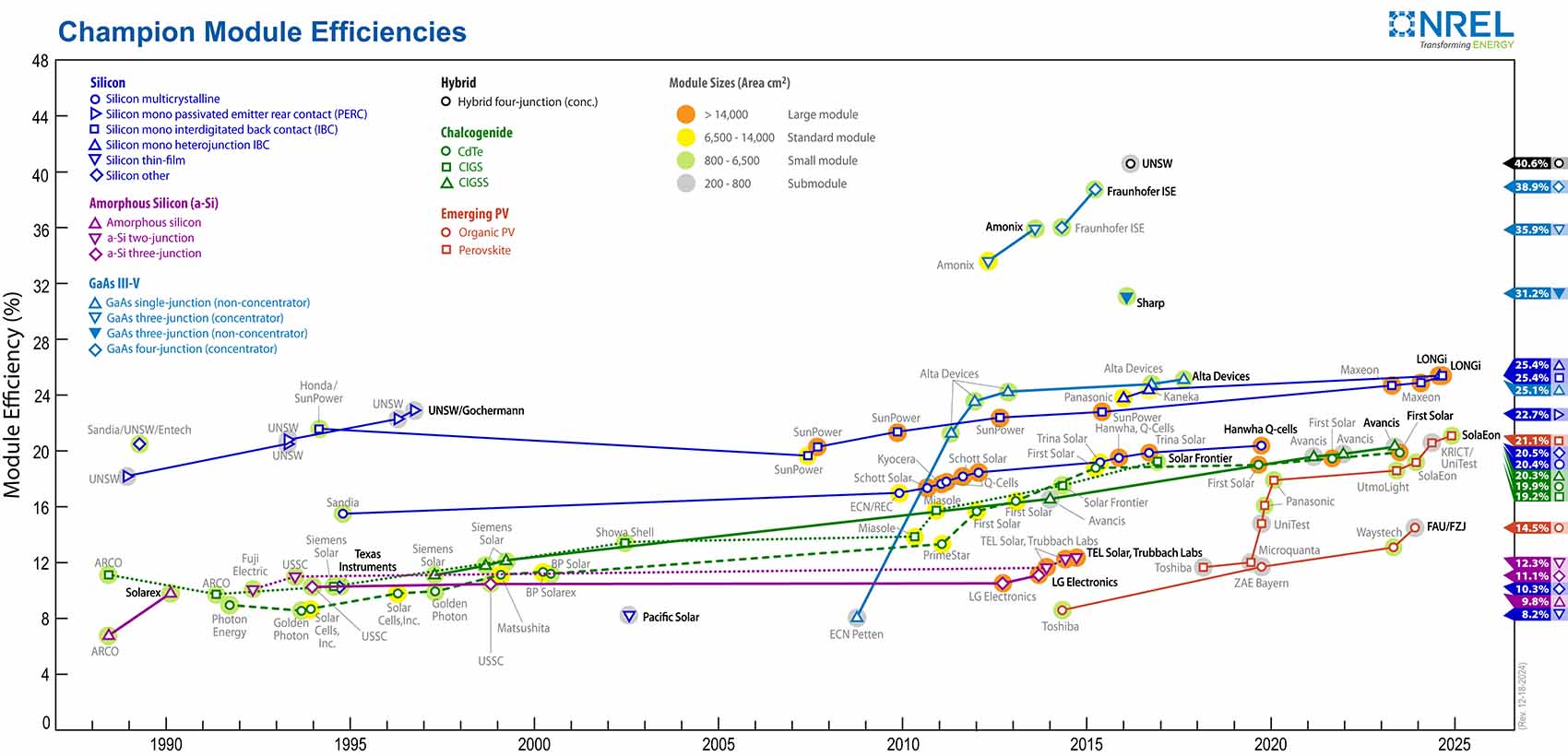

Chart of champion module efficiency versus years, with 24 curves that all start low to the left and rise approximately linearly to the upper right

Access our champion module efficiency data.

Download Chart

Or download the full data file or data guide.

Module Chart Explanatory Notes

Modules included in this chart of the current state of the art have efficiencies that are confirmed by independent, recognized test labs—e.g., NREL, AIST, JRC-ESTI and Fraunhofer-ISE—and are reported on a standardized basis. The measurements for new entries must be with respect to Standard Test or Reporting Conditions as defined by the global reference spectrum for flat-plate devices and the direct reference spectrum for concentrator devices as listed in standards IEC 60904-3 edition 2 or ASTM G173. The reference temperature is 25°C, and the area is the module total area or the area defined by an aperture.

Module efficiency results are provided within these families of semiconductors:

  • Silicon
  • Amorphous silicon
  • GaAs III-V
  • Hybrid
  • Chalcogenide
  • Emerging photovoltaics.

Modules are also delineated by area (square centimeters) into four clusters highlighted by colored circles:

  • >14,000 cm2: large module (orange)
  • 6,500–14,000 cm2: standard module (yellow)
  • 800–6,500 cm2: small module (green)
  • 200–800 cm2: mini-module (gray).

The most recent world record for each technology is highlighted along the right edge in a flag that contains the efficiency and the symbol of the technology. The company or group that fabricated the device for each most-recent record is bolded on the plot.

The information plotted by NREL is provided in good faith, but NREL cannot accept direct responsibility for any errors or omissions. The plot is not copyrighted and may be used in presentations and publications, with a notation that states: "This plot is courtesy of the National Renewable Energy Laboratory, Golden, CO."

Companies/Institutions
Label Full Name (If Different from Label)
Alta  Alta Devices
Amonix Amonix Inc.
ARCO Atlantic Richfield Co.
Avancis
BP Solar
BP Solarex
ECN Energy Research Centre of the Netherlands
ECN Petten
Entech
Fraunhofer ISE Fraunhofer Institute for Solar Energy Systems
FirstSolar First Solar Inc.
Fuji Electric
Gochermann Gochermann Solar Technology
Golden Photon
Hanwha
Honda
Kaneka Kaneka Solar Energy
Kyocera
LG Electronics
Matsushita
Miasole
Pacific Solar
Panasonic
Photon Energy
PrimeStar
Q-Cells
REC REC Solar
Schott Solar
Solar Cells Inc.
Showa Shell
Siemens Solar
Sandia Sandia National Laboratories
Solar Frontier
Solarex
SunPower SunPower Corp.
TEL Solar
Texas Instruments
Toshiba
Trina Solar
Trubbach Labs
UNSW University of New South Wales
USSC United Solar Systems Corp.
