Bioenergy Scientists Collaborate with Industry to Convey Feedstock Value, Improve Biomass Conversion Processes

December 10, 2018

Recognizing the importance of enhancing biomass conversion processes for industry, a team of NREL scientists partnered with Forest Concepts to perform detailed thermochemical conversion simulations for biomass feedstocks. The simulations relate feedstock attributes to expected product yields and necessary pyrolysis conversion process conditions. The work by NREL will allow Forest Concepts to better convey the value of their feedstocks to biorefinery customers.

Two men looking at large computer screens.

NREL researchers review mesoscale simulations of biomass conversion at NREL's Biomass Surface Characterization Lab. The models combine computational methods and image data to capture the complex behavior of real feedstocks. Photo by Vivek Bharadwaj/NREL

Working with Industry to Quantify Impact of Feedstock Characteristics

Forest Concepts, a leading manufacturer of precision woody and herbaceous feedstocks for bioenergy and bioproduct applications, leveraged NREL’s capabilities in biomass conversion modeling to help them quantify the impact of their feedstock characteristics based on various particle shapes and sizes. The NREL team is part of the Consortium for Computational Physics and Chemistry (CCPC), which uses high-performance computing to support the U.S. Department of Energy Bioenergy Technologies Office (BETO).

Prior to the development of the NREL models, Forest Concepts provided feedstock pricing based on volume and size of the biomass particle to their customers. Using the NREL models, Forest Concepts can now provide information to their customers such as standardized performance, required conversion conditions, and expected yields based on the size and shape of feedstock particles.

"The modeling data developed by NREL gave our company an understanding of how our production engineers can co-optimize reactors and feedstock properties to improve functional performance," said James H. Dooley, chief technology officer at Forest Concepts. "This conversion data will also help our customers select the optimal feedstock for their specific conversion process."

Particle Morphology Impact on Pyrolysis Conversion Times

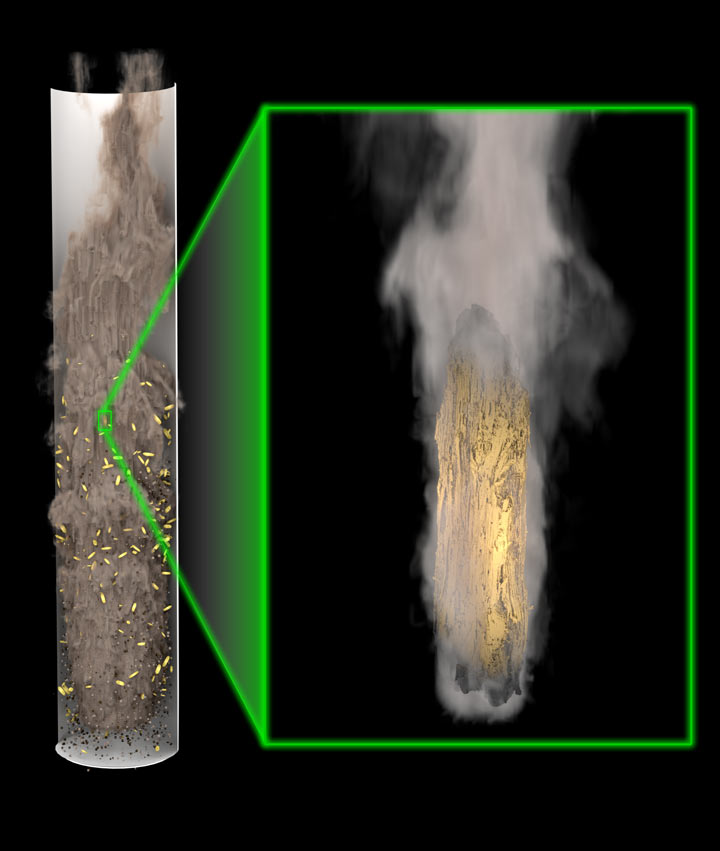

Rendering of a milled pine particle undergoing fast pyrolysis.

Depiction of a milled pine particle undergoing fast pyrolysis in a fluidized bed reactor. NREL simulations were used to relate pyrolysis yields and optimal reactor conditions to feedstock attributes such as size, shape, and thermal properties. Image by Peter Ciesielski/NREL

Models based on mixed particle sizes help determine the optimal residence times for maximum yield during conversion, which can increase the process throughput and decrease cost for industry to create sustainable biofuels and bioproducts. The outcome of the conversion process is dependent on feedstock characteristics. The volume and surface area of feedstock particles affects their heating behavior, which impacts the time that they must reside within a reactor as well as the yield of the pyrolysis process. Smaller particles heat up and convert in less time; however, it costs more money and energy to mill a feedstock particle to smaller sizes.

"The interesting thing about biomass feedstocks is that they retain the tissue structure of the once living organism. These feedstocks have a detailed morphology that can vary widely between sources," said Peter Ciesielski, senior scientist at NREL. "Appreciating the complexity of biomass feedstock morphology leads to accurate simulation results."

How They Did It: Modeling for Forest Concepts

The modeling team at NREL—Ciesielski and Brennan Pecha, a postdoctoral researcher—used realistic particle morphologies to simulate pine pyrolysis with a wide range of sizes from pulp chips to milled particles undergoing pyrolytic conversion to char, bio-oil, and gas. In this instance, a particle-scale pyrolysis model, which had been previously validated for a fluid bed reactor at NREL, was applied to nine particles ranging from 1.4 to 28 mm long with aspect ratios that were experimentally measured. Simulated reactor conditions were typical of a fluid bed system. The results were used to relate pyrolysis yields and optimal reactor conditions to feedstock attributes such as size, shape, and thermal properties. A detailed technical description of the methods used was recently published in Energy & Fuels in an article titled, "Integrated Particle- and Reactor-Scale Simulation of Pine Pyrolysis in a Fluidized Bed."

Sustained Support by DOE for Advanced Models for Biomass Feedstock

BETO's sustained support has been invaluable to the development of biomass particle models.

BETO recognized early on the value of developing detailed biomass feedstock particle models to understand how the properties of each particle impact the yield and composition products from the conversion process. Five years in the making, BETO's sustained support of the CCPC has been invaluable to the development of biomass particle models. Moving forward, these capabilities will be leveraged by the newly established Feedstock-Conversion Interface Consortium, whose mission is to quantify, understand, and manage variability in biomass from field through downstream conversion and to understand how biomass composition, structure, and behavior impact system performance.

"BETO funding has been critical in enabling us to develop these state-of-the-art biomass particle models," said Ciesielski. "It's a positive sign that our models were able to help an industry partner like Forest Concepts to further optimize their feedstocks to better serve their customers and advance the renewable bioeconomy."
